Mega Drive Mk1 Guides

Step by step guide

Below is quick quides

Motherboard IC BD M5 PAL

Motherboard IC BD M5 PAL VA4

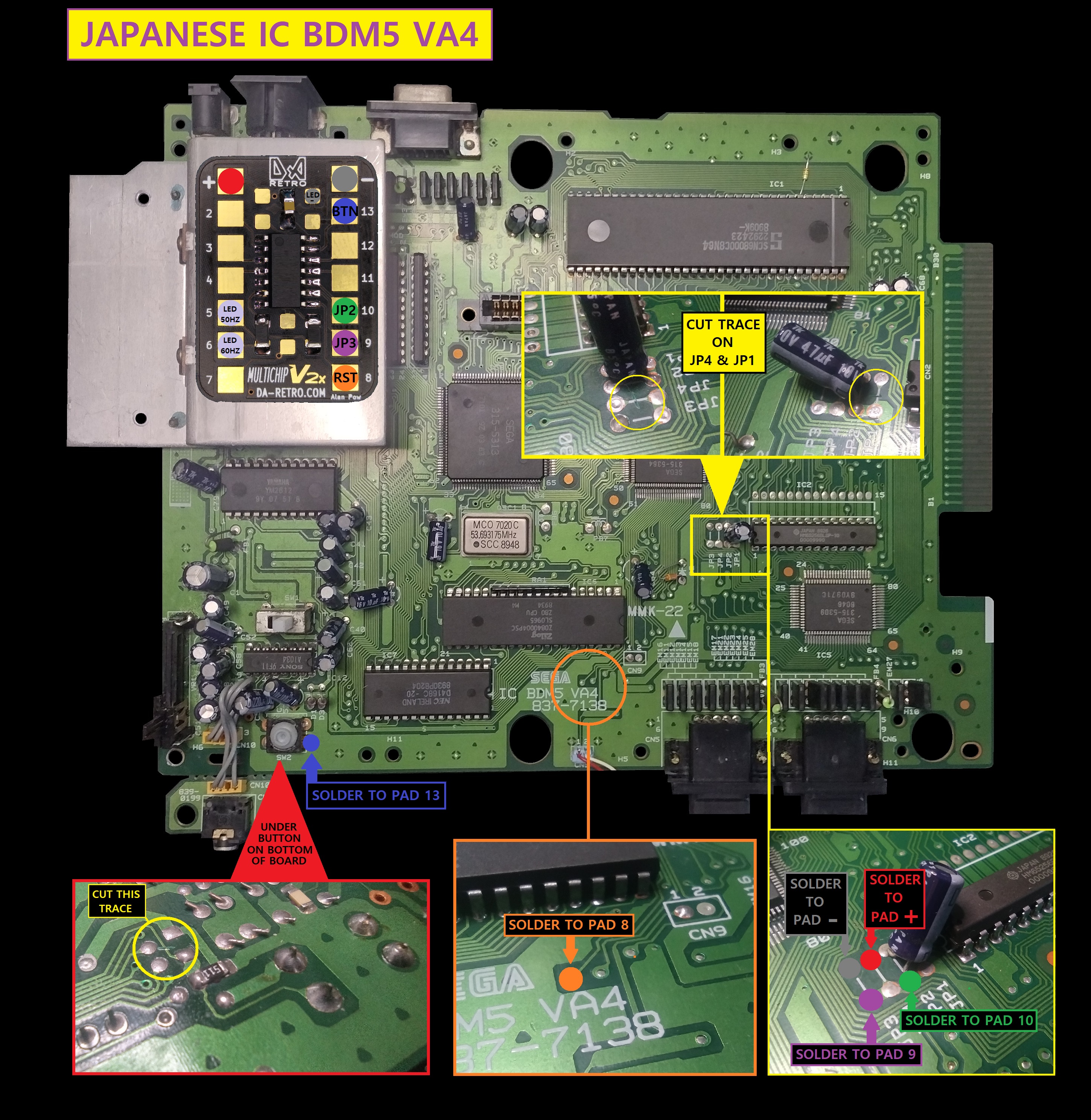

Motherboard JAPANESE IC BDM5 VA4

LED info

below is the LED leg details

Longest leg is Ground
Shortest leg is Blue
Last leg is Red
